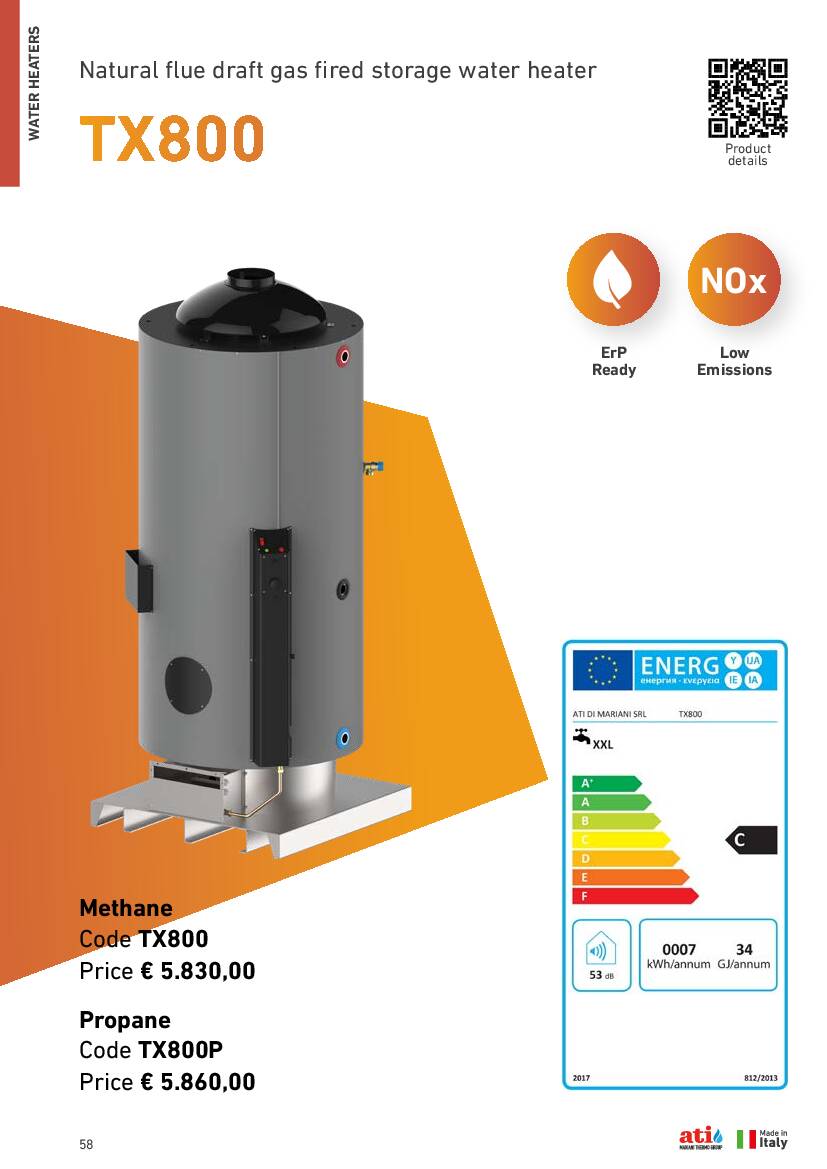

TX800

TX800

TX is the new range of natural draft water heaters redesigned in compliance with the new Low NOx ErP 2018 regulation.

TX is a storage water heater from 220 to 400 liters depending on the model.
The new range of natural draft water heaters was redesigned with electronic ignition and windproof system.
All the appliances produced in our factory are checked and tested.

The TX range meets the requirements of the EN89: 2015 standard and the following European directives:

2016/426 - Gas appliances regulation (GAR)
2014/35 / EC - Low Voltage Directive (LVD)
2014/30 / CE - Electromagnetic Compatibility Directive (EMC)

Request Info

Info request module

Please, fill the module on any of its fields.

Nominal storage capacity	L	740
Empty weight	kg	301
Filled weight	kg	1041
Rated heat input [Qn]	kW	28
Rated heat output [Pn]	kW	26,3
Nitrogen oxide [NO_x]	ppm	21
Nitrogen oxide emission [NO_x]	mg/kWh	37
Noise level	dB(A)	53
Efficiency	%	90
Maximum working pressure	kPa (bar)	600 (6)
Energy efficiency class		C
Load profile		XXL
Annual electricity consumption [AEC]	kWh	7
Annual fuel consumption [AFC]	GJ	34
Consumo gas [G20 metano]	mc/h	2,9
Consumo gas [G31 propano]	kg/h	2,2
Mixed water 40°C [V40]	L	1227
T cold	°C	10
T storage	°C	70
Draw-off capacity continuous withdrawal [ΔT=25°C]	l/h	905
Draw-off capacity continuous withdrawal [ΔT=50°C]	l/h	453
Recovery time [ΔT=25°C]	min	49
Recovery time [ΔT=50°C]	min	98
Draw-off capacity - single withdrawal [ΔT=25°C]	L	1.776
Draw-off capacity - single withdrawal [ΔT=50°C]	L	888
Power supply	V/Hz	230V / 50Hz / 10w
Dimensions (w x d x h)	mm	920x920x2260
Cold Water Inlet [F]	in	1 e 1/4
Hot Water Outlet [C]	in	1 e 1/4
Gas Inlet [G]	in	1/2
Recirculation [R]	in	1 e 1/4
Package Pcs.		2
Package Weight	Kg	6 + 320
Package Dimensions [w x d x h]	mm	(630x630x220) , (980x980x2110)

Nominal storage capacity

740

Empty weight

301

Filled weight

1041

Rated heat input [Qn]

Rated heat output [Pn]

26,3

Nitrogen oxide [NO_x]

ppm

Nitrogen oxide emission [NO_x]

mg/kWh

Noise level

dB(A)

Efficiency

Maximum working pressure

kPa (bar)

600 (6)

Energy efficiency class

Load profile

XXL

Annual electricity consumption [AEC]

kWh

Annual fuel consumption [AFC]

Consumo gas [G20 metano]

mc/h

2,9

Consumo gas [G31 propano]

kg/h

2,2

Mixed water 40°C [V40]

1227

T cold

°C

T storage

°C

Draw-off capacity continuous withdrawal [ΔT=25°C]

l/h

905

Draw-off capacity continuous withdrawal [ΔT=50°C]

l/h

453

Recovery time [ΔT=25°C]

min

Recovery time [ΔT=50°C]

min

Draw-off capacity - single withdrawal [ΔT=25°C]

1.776

Draw-off capacity - single withdrawal [ΔT=50°C]

888

Power supply

V/Hz

230V / 50Hz / 10w

Dimensions (w x d x h)

920x920x2260

Cold Water Inlet [F]

1 e 1/4

Hot Water Outlet [C]

1 e 1/4

Gas Inlet [G]

1/2

Recirculation [R]

1 e 1/4

Package Pcs.

Package Weight

6 + 320

Package Dimensions [w x d x h]

(630x630x220) , (980x980x2110)
