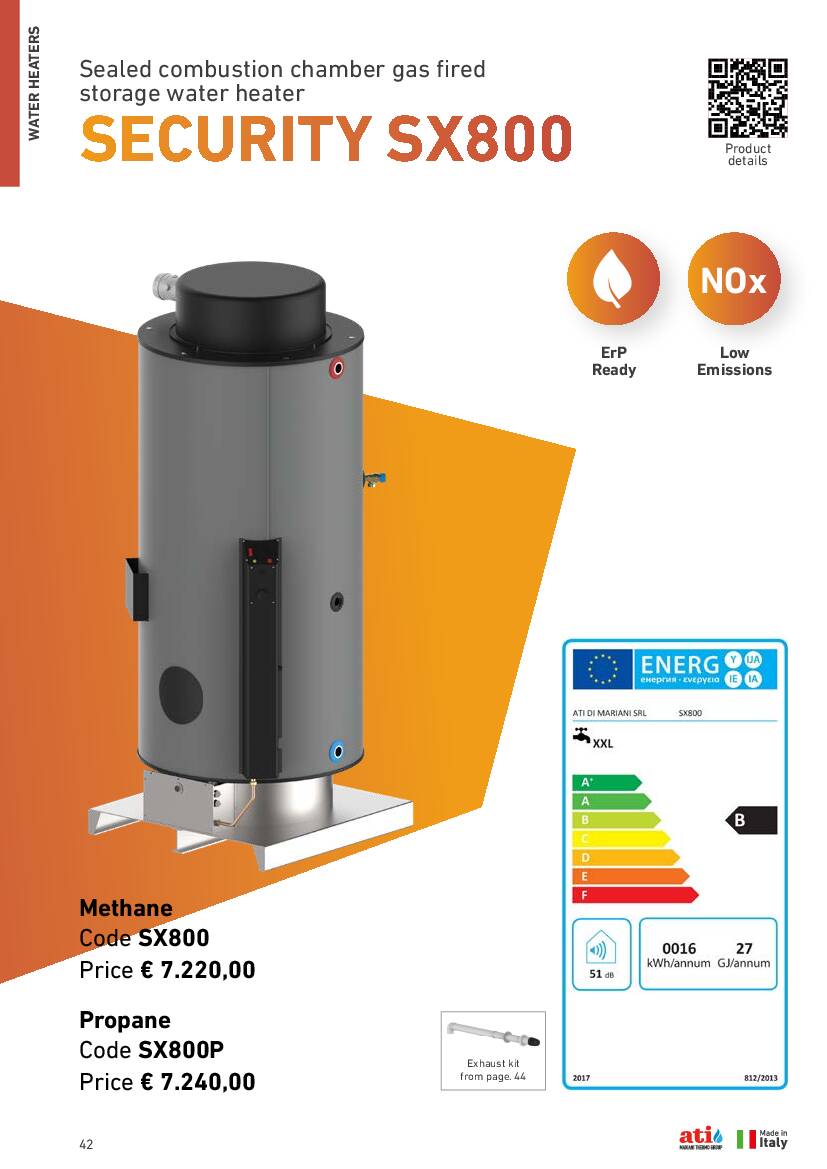

Water heaters sealed combustion chamber industrial use

SX800

Certificazione CE
Dimensione XXL
Fascia Energetica B
Made in Italy
TUV Rheinland

T usage 38°C - T inlet 10°C - T accumulo 80°C

recovery time

145 min

recovery time
(ΔT= 70°C)

N° showers period: 5 min flow: 8 l/min

x 63,5

N° showers period: 5 min flow: 8 l/min

N° sinks period: 3 min flow: 6 l/min

x 88

N° sinks period: 3 min flow: 6 l/min

N° sinks period: 10 min flow: 6 l/min

x 26,5

N° sinks period: 10 min flow: 6 l/min

N° commercial sinks period: 10 min flow: 12 l/min

x 13

N° commercial sinks period: 10 min flow: 12 l/min

N° bathtubs capacity: 170 l

x 9,5

N° bathtubs capacity: 170 l

Request Info

Info request module

Please, fill the module on any of its fields.

Overview

  • room-sealed combustion chamber
  • fan assisted flue
  • glass-lined tank (with magnesium anode protection against corrosion)
  • automatic electronic ignition with flame detection by ionization
  • adjustable thermostat and overheat safety thermostat
  • stainless steel multi gas burner (NG or propane)
  • high efficiency
  • floor installation
  • easy installation adjustable flue hood
  • different configuration smoke exhaust system options (horizontal or vertical, concentric, single wall); the usage of original exhaust kit is indispensable for a proper functioning
  • 50 mm thick closed cell polyurethane foam insulation

Components

  1. Overpressure safety valve fitted as standard

  2. Differential pressure switch

  3. Control box

  4. Gas valve

  5. Flange for inspection and calcium cleaning and magnesium anode for corrosion protection

  6. Plate tank of first choice (thickness 2.5 and 4 mm) with internal treatment of double enamelling

  7. Instrument control panel (thermometer, adjustable thermostat, safety thermostat)

  8. Flue hood

Specifications

Nominal storage capacity L 740
Empty weight kg 303
Filled weight kg 1043
Rated heat input [Qn] kW 23,0
Rated heat output [Pn] kW 21,0
Nitrogen oxide [NOx] ppm 16
Nitrogen oxide emission [NOx] mg/kWh 28
Noise level dB(A) 51
Efficiency % 93
Maximum working pressure kPa (bar) 600 (6)
Energy efficiency class B
Load profile XXL
Annual electricity consumption [AEC] kWh 16
Annual fuel consumption [AFC] GJ 27
Consumo gas [G20 metano] mc/h 2,4
Consumo gas [G31 propano] kg/h 1,8
Mixed water 40°C [V40] L 1238
T cold °C 10
T storage °C 70
Draw-off capacity continuous withdrawal [ΔT=25°C] l/h 740
Draw-off capacity continuous withdrawal [ΔT=50°C] l/h 370
Recovery time [ΔT=25°C] min 60
Recovery time [ΔT=50°C] min 121
Draw-off capacity - single withdrawal [ΔT=25°C] L 1.776
Draw-off capacity - single withdrawal [ΔT=50°C] L 888
Power supply V/Hz 230V / 50Hz / 51w
Dimensions (w x d x h) mm 920x920x2277
Cold Water Inlet [F] in 1 e 1/4
Hot Water Outlet [C] in 1 e 1/4
Gas Inlet [G] in 1/2
Recirculation [R] in 1 e 1/4
Package Pcs. 2
Package Weight Kg 9 + 319
Package Dimensions [w x d x h] mm (980x980x2110) , (670x670x260)

Dimensions

Downloads

Scarico fumi

The boiler is supplied without an exhaust kit. The following table shows available kits for this appliance.
Use only the original kits supplied by the manufacturer (to be purchased separately according to the type of exhaust intended).

AKIT21

Ø60 / 100 Horizontal concentric flue kit
C1

Contents

  • Ø100 x 640 M/M pipe
  • Ø60 x 700 M/M pipe
  • Ø60 seal
  • Ø100 seal
  • Hood seal
  • Ø100 silicone wall cover
  • Ø60 / 100 centering spring
  • Ø60 / 100 intake/ exhaust terminal
  • Air regulation diaphragms

Dimensions and limits of use

Accessories and extensions

Photo Code
AIPC10 Male/Female concentric pipe with socket Ø60/100 L=1000
AIPC05 Male/Female concentric pipe with socket Ø60/100 L=500
AICC45 Male/Female concentric elbow with socket Ø60/100 a 45°
AICC90 Male/Female concentric elbow with socket Ø60/100 a 90°
AKIT23

Ø60 / 100 Vertical concentric flue kit
C3

Contents

  • Ø60 at 90° elbow
  • Ø100 at 90° elbow
  • Ø60 seal
  • Ø100 seal
  • Ø100 x 1000 M/M pipe
  • Ø60 x 1000 M/M pipe
  • Intake/ exhaust terminal

Dimensions and limits of use

AKIT24

Ø80 / 125 Vertical concentric flue kit
C3

Contents

  • Ø80 / 125 T element with adapter
  • Plug with drain
  • Ø80 x 1000 M/M pipe
  • Ø125 x 1000 M/M pipe
  • EPDM Ø80 seal
  • EPDM Ø125 seal
  • Ø80 / 125 centering ring
  • Ø125 clamp
  • Intake / exhaust terminal
  • Air regulation diaphragms

Dimensions and limits of use

Accessories and extensions

Photo Code
AIPC10 Male/Female concentric pipe with socket Ø60/100 L=1000
AKIT24-01 Stainless steel/stainless steel concentric elbow Ø80/125 - 45°
AIPC05 Male/Female concentric pipe with socket Ø60/100 L=500
AKIT24-02 Ø80/125 L=500 Concentric stainless steel/stainless steel extension pipe
AKIT24-03 Ø80/125 L=1000 Concentric stainless steel/stainless steel extension pipe
AKIT24-04 Ø125 Stainless steel adjustable wall bracket
AKIT26

Double Wall vertical flue kit Ø80 / 130
B5

Contents

  • Ø80 / 130 T element with adapter
  • Ø60 - Ø80 increase adapter
  • Ø80 plug with drain
  • Ø80 x 1000 M/F pipe
  • Ø130 x 1000 M/M pipe
  • Ø80 seal
  • Exhaust terminal
  • Flange with air intake grid
  • Air regulation diaphragms

Dimensions and limits of use

Accessories and extensions

Photo Code
AKIT26-01 Concentric extension pipe Ø80/130 L=500 Stainless Steel/Aluminum
AKIT26-02 Concentric extension pipe Ø80/130 L=1000 Stainless Steel/Aluminum
AKIT26-03 Concentric elbow Ø80/130 a 45° Stainless Steel/Aluminum
AKIT26-04 Adjustable wall bracket Ø130 Stainless Steel
AKIT25

Single Wall horizontal flue kit Ø80
B5

Contents

  • Ø60 - Ø80 increase adapter
  • Ø80 x 100 M/F pipe
  • Ø80 seal
  • Exhaust terminal
  • Flange with air intake grid
  • Air regulation diaphragms

Dimensions and limits of use

Accessories and extensions

Photo Code
AKIT25-01 Extension pipe Ø80 L=500 Stainless steel
AKIT25-02 Extension pipe Ø80 L=1000 Stainless steel
AKIT25-03 Elbow Ø80 a 45° Stainless steel
AKIT25-04 Elbow Ø80 a 90° Stainless steel
AKIT22

Ø80 / 80 Horizontal splitted flue kit
C4,C5,C8

Contents

  • Ø80 x 100 M/M pipe
  • Ø100/80 M/M reduction
  • Ø80 seal
  • Ø80 air intake terminal
  • Ø80 exhaust terminal
  • Hood seal
  • Ø80 silicone wall cover
  • Ø80 x 60 M/M pipe with fumes sampling
  • Air regulation diaphragms

Dimensions and limits of use

Accessories and extensions

Photo Code
A.I.PR802 Extension pipe with socket Ø80 L=250
A.I.PR805 Extension pipe with socket Ø80 L=500
A.I.PR80 Extension pipe with socket Ø80 L=1000
A.I.CV804 Male/Female elbow with socket Ø80 a 45°
A.I.CV809 Male/Female elbow with socke Ø80 a 90°
